Download the configuration utility:
Configuration utility
All the settings for the Wi-Fi require the printer connected in USB

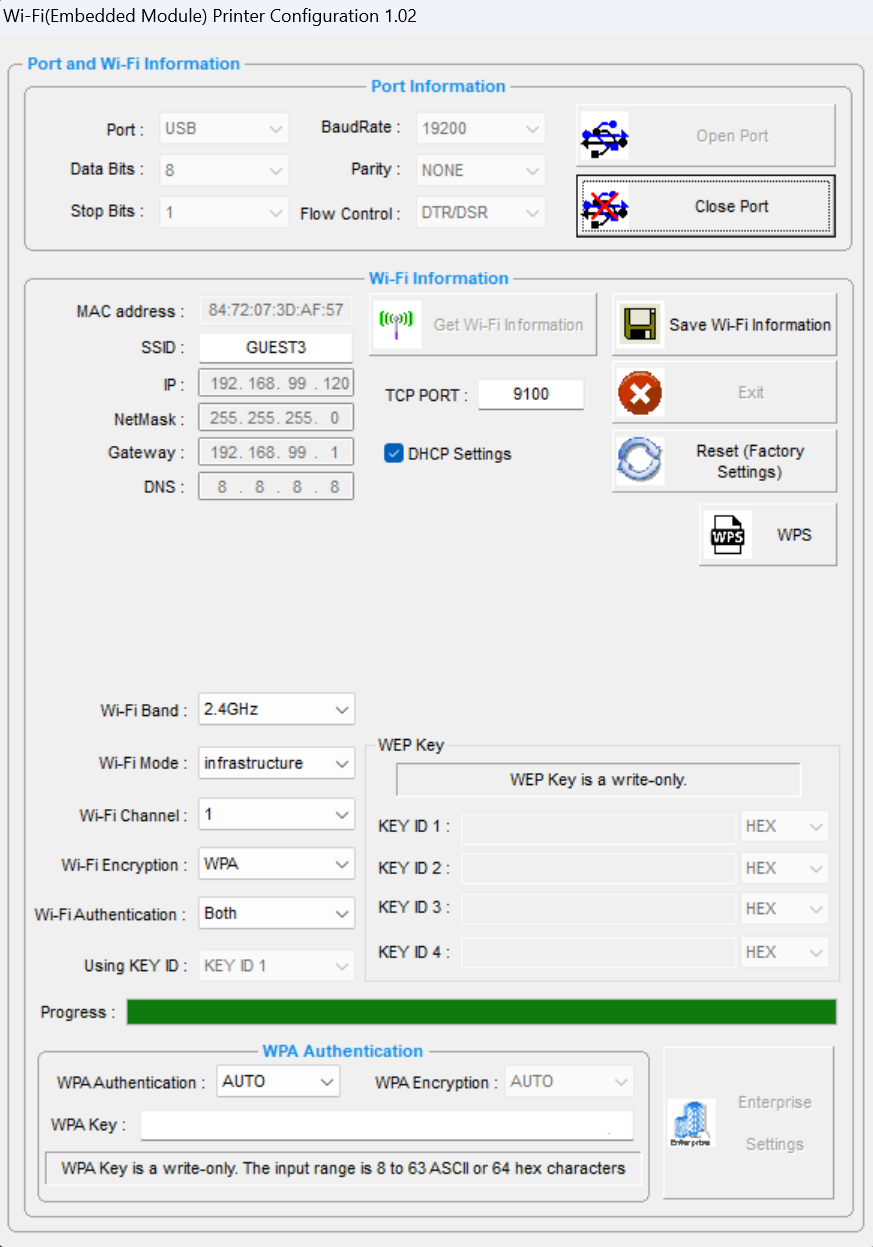

Launch the utility and select the correct configuration for your printer:
On this Windows:
For the TRP100-III Click on Read from Printer
For the ODP444 Click on Open Port puis Get Wi-Fi information
- Configure the SSID and IP Address
SSID must matches the SSID from your Wi-Fi network.
You can set a fixed IP or use the DHCP.
2. Wi-Fi Settings
The Wi-Fi mode must be set to Infrastructure.
Set the Encryption settings from your Wi-Fi network.
Then set the Wi-Fi password in the WPA Authentication.
Save the configuration:
TRP100-III: Click onSave to Printer
ODP444: Click on Save Wi-Fi information
