Installing the paper roll:

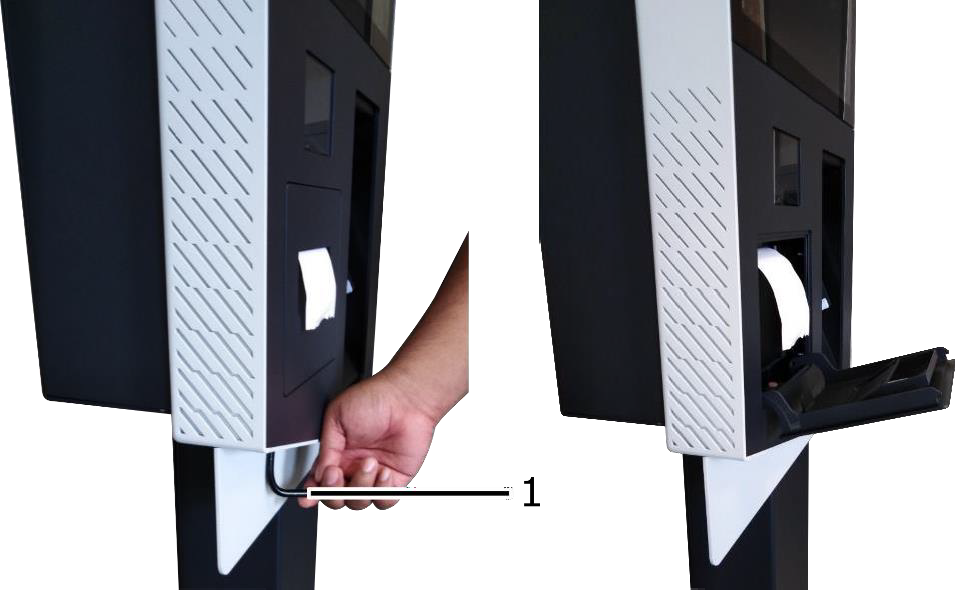

1. Take an opening tool and insert it in the hole provided for this purpose.
NOTE: The opening tool (as shown on the photo) is supplied with the kiosk. If unavailable, any other
means (pencil, ball pen, metal rod, etc.) can be used.
2. Press: the printer access hatch (1) opens.

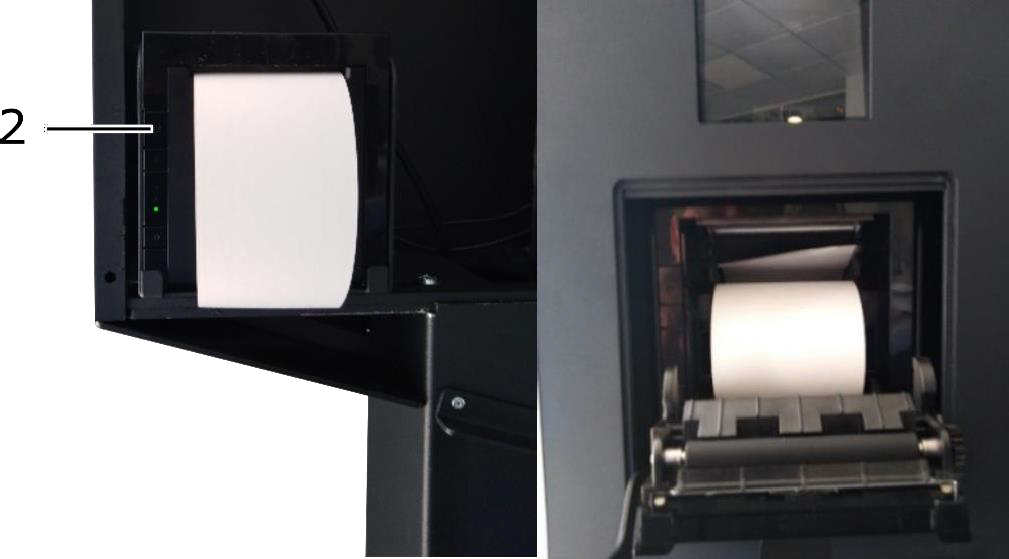

3. Press the cover opening button (2) to open the printer cover.
4. Completely remove the paper from the back of the printer.
NOTE: DO NOT USE CUTTERS OR OTHER METAL BLADES.
