Open the front side

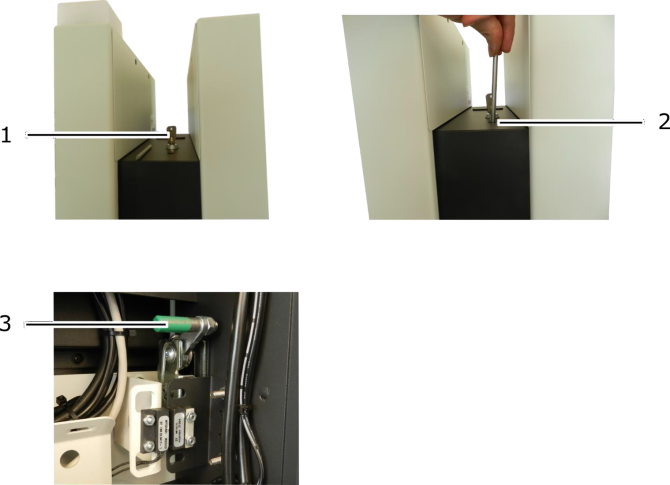

Identify the green lever (3) in the box and lower it: The rear panel opens.

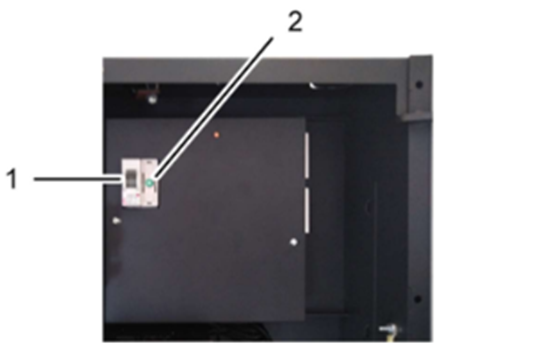

Set the circuit breaker (1) to On
The light (2) comes on and the equipment starts up: The barcode scanner, the electronic payment
terminal, the printer, and the touchscreen are functioning.

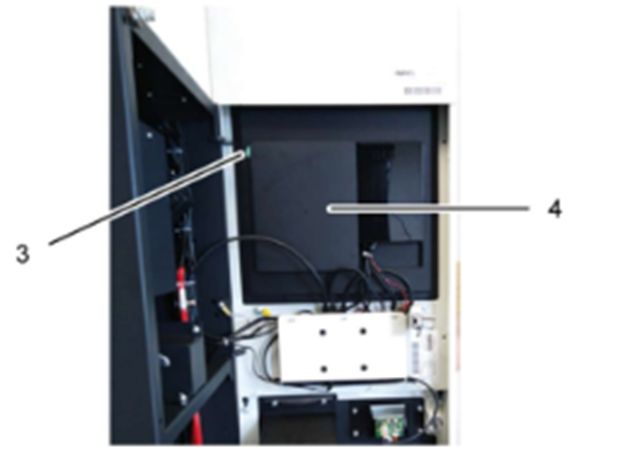

If the touchscreen remains blank, check the indicator light (3) on the PC panel (4). If the light is off, press it.
The indicator light comes on, the touchscreen comes on.
